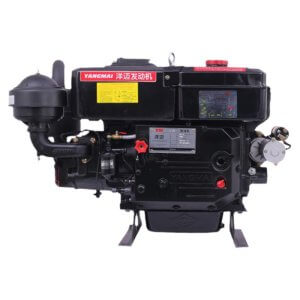

| YM1125 Diesel Engine | ||||||
| Model | YM1125 | |||||
| Type | single cylinder,horizontal,4strok,P type oil nozzles/direct injection | |||||
| Bore*Strok(mm) | 125*120 | |||||
| Total Displacement(L) | 1.472 | |||||
| Rated Output(kw) | 18.38 | |||||
| Max.Output(kw/rpm) | 20.2 | |||||
| Rated Speed(r/min) | 2200 | |||||
| Specific Fuel(g/kwh) | ≤244.8 | |||||
| Tank Capacity | 25 | |||||
| Fuel Tank Capacity | 22 | |||||
| Cooling System Comsuption | Evaporative | |||||
| Lubrication Method | Pressure Splash spray | |||||
| Starting Method | Electric Start | |||||
| Net Weight(kg) | 200 | |||||
