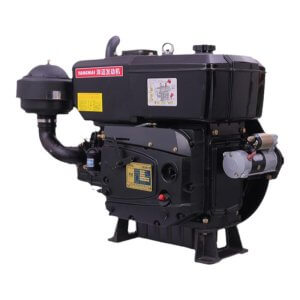

| YM 1135 Marine Diesel Engine | ||||||
| Model | YM 1135 Marine | |||||
| Type | single cylinder,horizontal,4strok,P type oil nozzles /direct injection | |||||
| Bore*Strok(mm) | 135*125 | |||||
| Total Displacement(L) | 1.79 | |||||
| Rated Output(kw) | 23.53 | |||||
| Max.Output(kw/rpm) | 24.28 | |||||
| Rated Speed(r/min) | 2200 | |||||
| Specific Fuel(g/kwh) | ≤244.8 | |||||
| Tank Capacity | 25 | |||||
| Fuel Tank Capacity | 22 | |||||
| Cooling System Comsuption | Evaporative | |||||
| Lubrication Method | Pressure Splash spray | |||||
| Starting Method | Electric Start | |||||
| Net Weight(kg) | 220 | |||||
