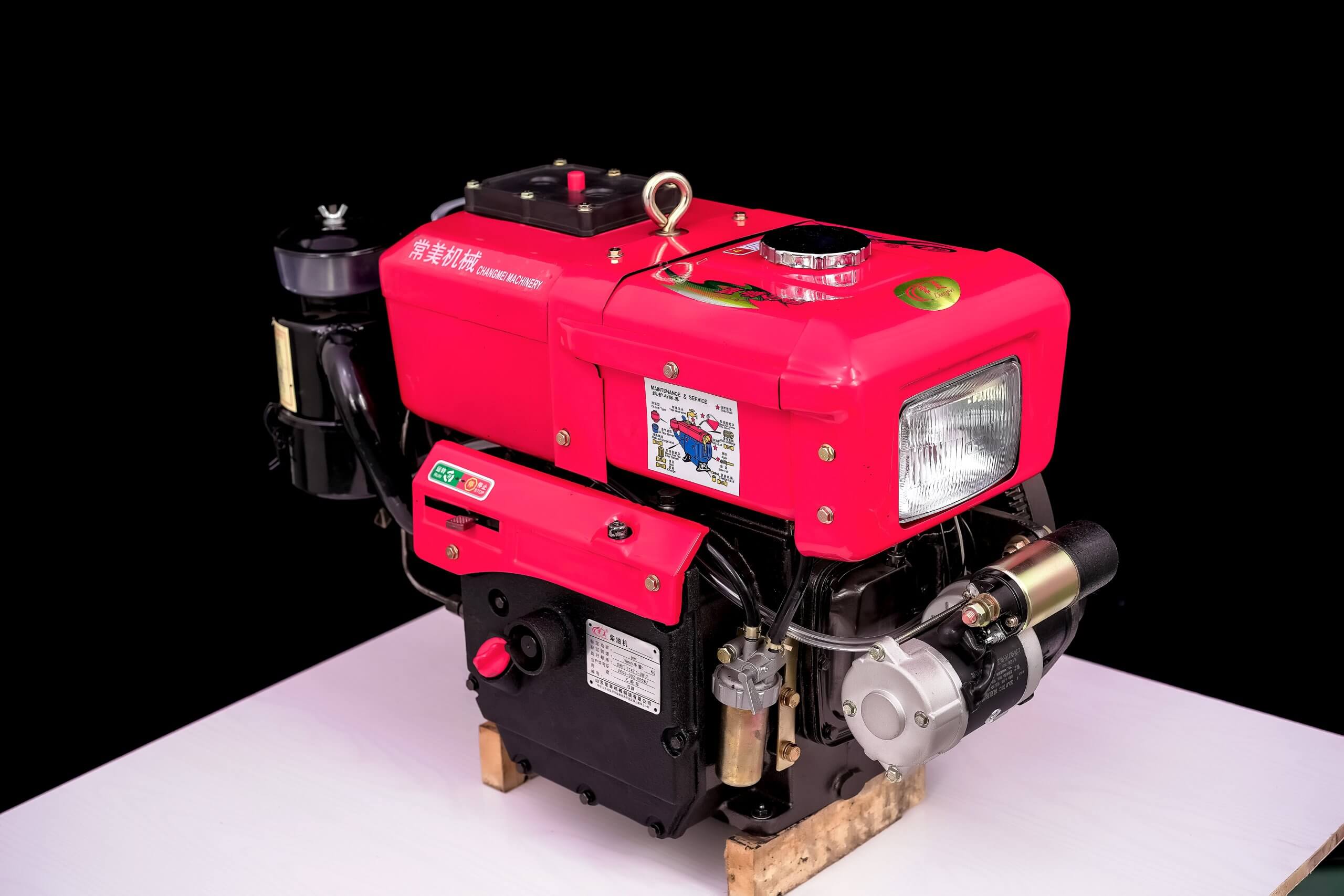

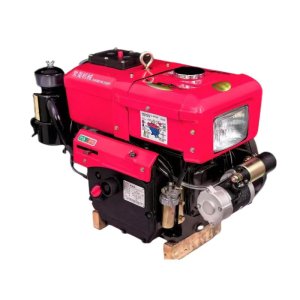

| ZR198 Diesel Engine | ||||||
| Model | ZR198 | |||||
| Type | single cylinder,horizontal,4strok,direct injection | |||||
| Bore*Strok(mm) | 98*100 | |||||
| Total Displacement(L) | 0.753 | |||||
| Rated Output(kw) | 10.1 | |||||
| Max.Output(kw/rpm) | 10.5 | |||||
| Rated Speed(r/min) | 2300 | |||||
| Specific Fuel(g/kwh) | ≤258.4 | |||||
| Tank Capacity | 13.6 | |||||
| Fuel Tank Capacity | 9.5 | |||||
| Cooling System Comsuption | Condensing | |||||
| Lubrication Method | Pressure Splash spray | |||||
| Starting Method | Electric Start | |||||
| Net Weight(kg) | 120 | |||||
