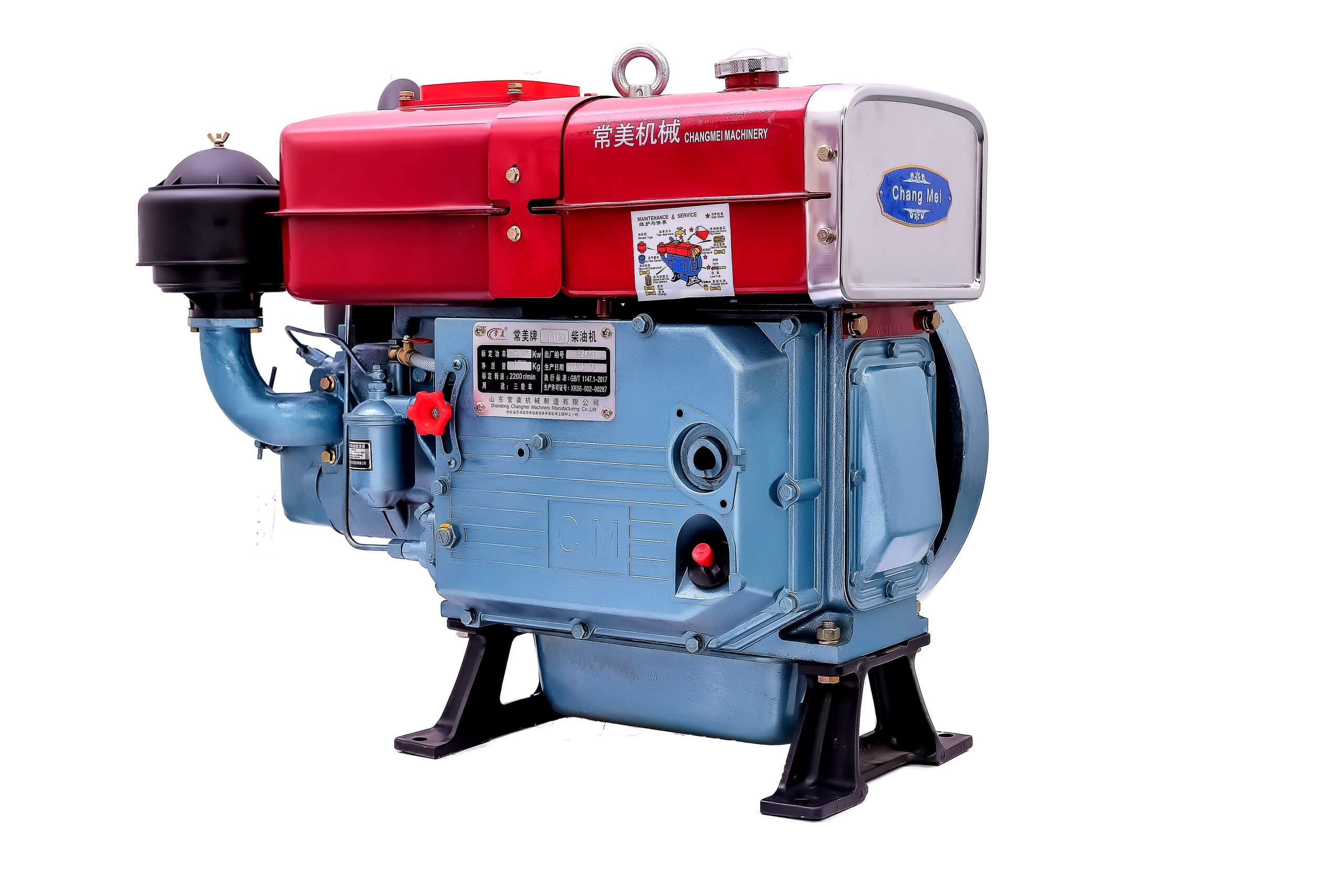

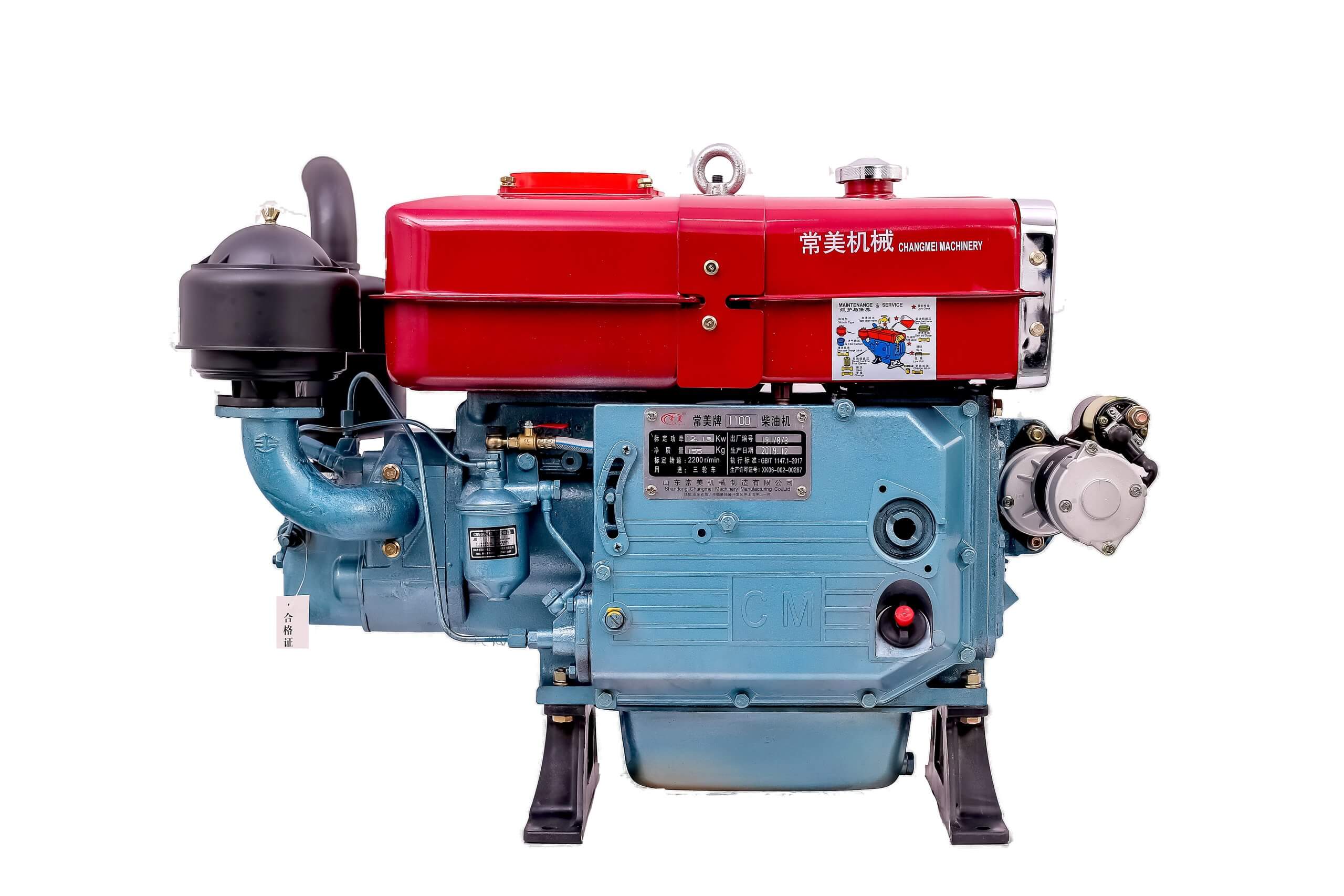

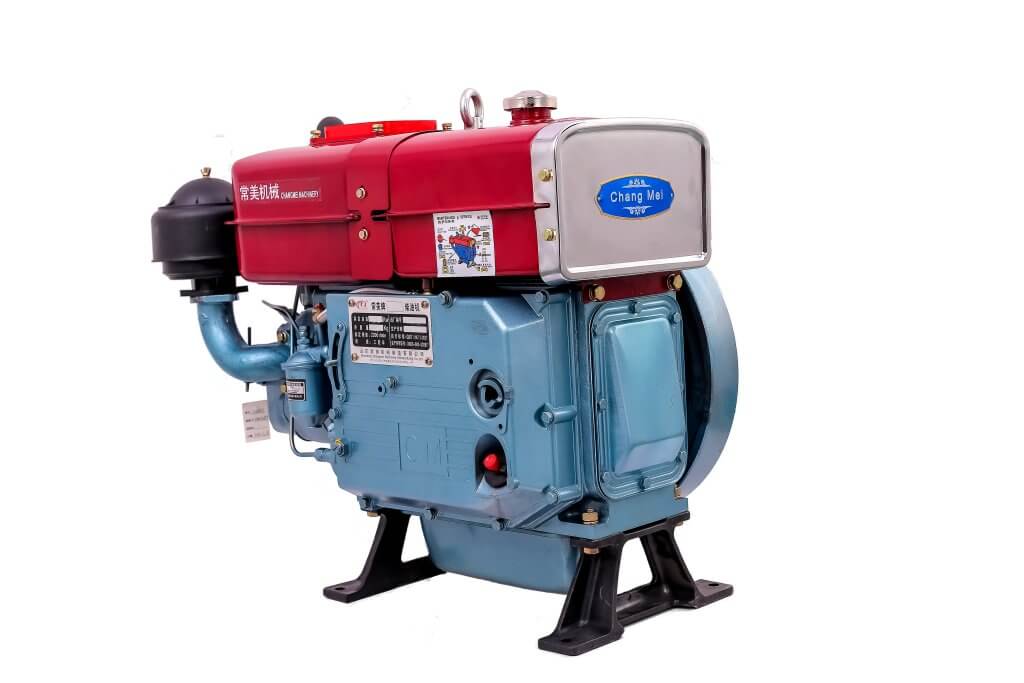

| ZS1105 Diesel Engine | ||||||
| Model | ZS1105 | |||||
| Type | single cylinder,horizontal,4strok,direct injection | |||||
| Bore*Strok(mm) | 110*115 | |||||
| Total Displacement(L) | 1.093 | |||||
| Rated Output(kw) | 13.24 | |||||
| Max.Output(kw/rpm) | 14.56 | |||||
| Rated Speed(r/min) | 2200 | |||||
| Specific Fuel(g/kwh) | ≤244.8 | |||||
| Tank Capacity | 17.5 | |||||
| Fuel Tank Capacity | 12 | |||||
| Cooling System Comsuption | Evaporative | |||||
| Lubrication Method | Pressure Splash spray | |||||
| Starting Method | Hand Start | |||||
| Net Weight(kg) | 185 | |||||
