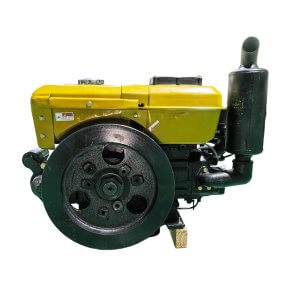

| H100 Diesel Engine | ||||||
| Model | H100 | |||||
| Type | single cylinder,horizontal,4strok,direct injection | |||||
| Bore*Strok(mm) | 100*100 | |||||
| Total Displacement(L) | 0.785 | |||||
| Rated Output(kw) | 11.2 | |||||
| Max.Output(kw/rpm) | 11.5 | |||||
| Rated Speed(r/min) | 2400 | |||||
| Specific Fuel(g/kwh) | ≤250 | |||||
| Tank Capacity | 13.6 | |||||
| Fuel Tank Capacity | 8 | |||||
| Cooling System Comsuption | Condensing | |||||
| Lubrication Method | Pressure Splash spray | |||||
| Starting Method | Hand Start | |||||
| Net Weight(kg) | 120 | |||||
