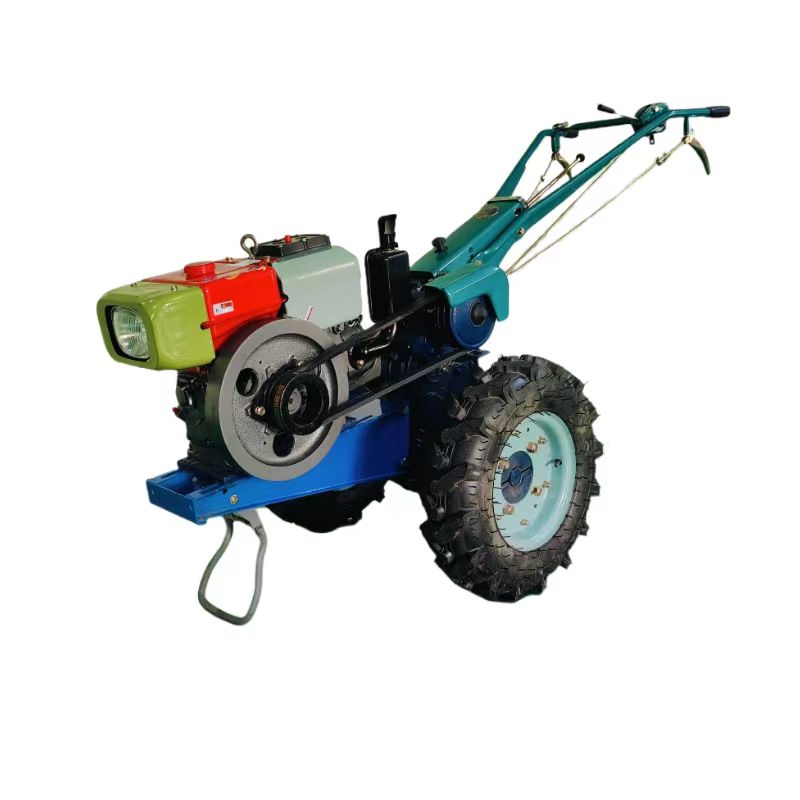

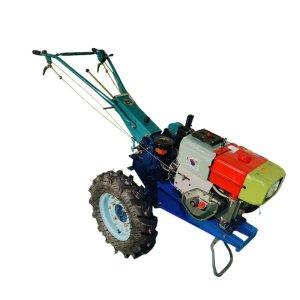

| CM61 Chassis | ||||||
| Model | CM61 | |||||
| Type | Traction&Driving | |||||
| Rated traction | 1700N | |||||
| Dimensions(L*W*H)w | 2240*840*1310mm | |||||
| Min Ground Distance | 165mm | |||||
| Structure Weight | 150Kg | |||||
| Type Of Clutch | Three-piece, single-acting, dry type, often combined with friction type | |||||
| Type Of Steering Gear | Tooth clutch | |||||
| Type Of Brake | Hoof Style | |||||
| Triangle belt | two | |||||
| Type Of Tyre | 6.00-12 | |||||
| Tread | 600-700mm | |||||
| Style | three forward, one backward | |||||
| chuan180 Diesel Engine | ||||||
| Model | chuan 180 | |||||
| Type | single cyulinder,horizontal,4strok,Swirl chamber/direct injection | |||||
| Bore*Strok(mm) | 80*90 | |||||
| Total Displacement(L) | 0.45 | |||||
| Rated Output(kw) | 5.15 | |||||
| Max.Output(kw/rpm) | 5.66 | |||||
| Rated Speed(r/min) | 2200 | |||||
| Specific Fuel(g/kwh) | ≤258.4 | |||||
| Tank Capacity | 10.6 | |||||
| Fuel Tank Capacity | 8 | |||||
| Cooling System Comsuption | Evaporative | |||||
| Lubrication Method | Pressure Splash spray | |||||
| Starting Method | Hand Start/Electric Start | |||||
| Net Weight(kg) | 94 | |||||
