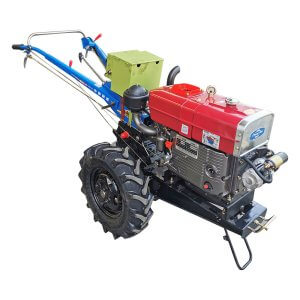

| CM121 Chassis | ||||||
| Model | CM121 | |||||
| Type | Traction&Driving | |||||
| Rated traction | 1700N | |||||
| Dimensions(L*W*H)w | 2170*890*1150mm | |||||
| Min Ground Distance | 210mm | |||||
| Structure Weight | 170Kg | |||||
| Type Of Clutch | Single/Double friction disc of constant conjunction | |||||
| Type Of Steering Gear | Meshing Sleeve | |||||
| Type Of Brake | Cricoids Inside Expansion | |||||
| Type Of Clutch | Two slot Tree | /Two slot double/Three slot single disc | ||||
| Type Of Tyre | 6.00-12/3.00-14 | |||||
| Tread | 640-1160mm | |||||
| Style | Six forward, two backward | |||||
| Semi-Axis | 420/450/520/600mm | |||||
| ZS1105 Diesel Engine | ||||||
| Model | ZS1105 | |||||
| Type | single cyulinder,horizontal,4strok,Swirl chamber/direct injection | |||||
| Bore*Strok(mm) | 110*115 | |||||
| Total Displacement(L) | 1.093 | |||||
| Rated Output(kw) | 13.24 | |||||
| Max.Output(kw/rpm) | 14.56 | |||||
| Rated Speed(r/min) | 2200 | |||||
| Specific Fuel(g/kwh) | ≤244.8 | |||||
| Tank Capacity | 17.5 | |||||
| Fuel Tank Capacity | 12 | |||||
| Cooling System Comsuption | Evaporative/Condensing | |||||
| Lubrication Method | Pressure Splash spray | |||||
| Starting Method | Hand Start/Electric Start | |||||
| Net Weight(kg) | 185 | |||||
