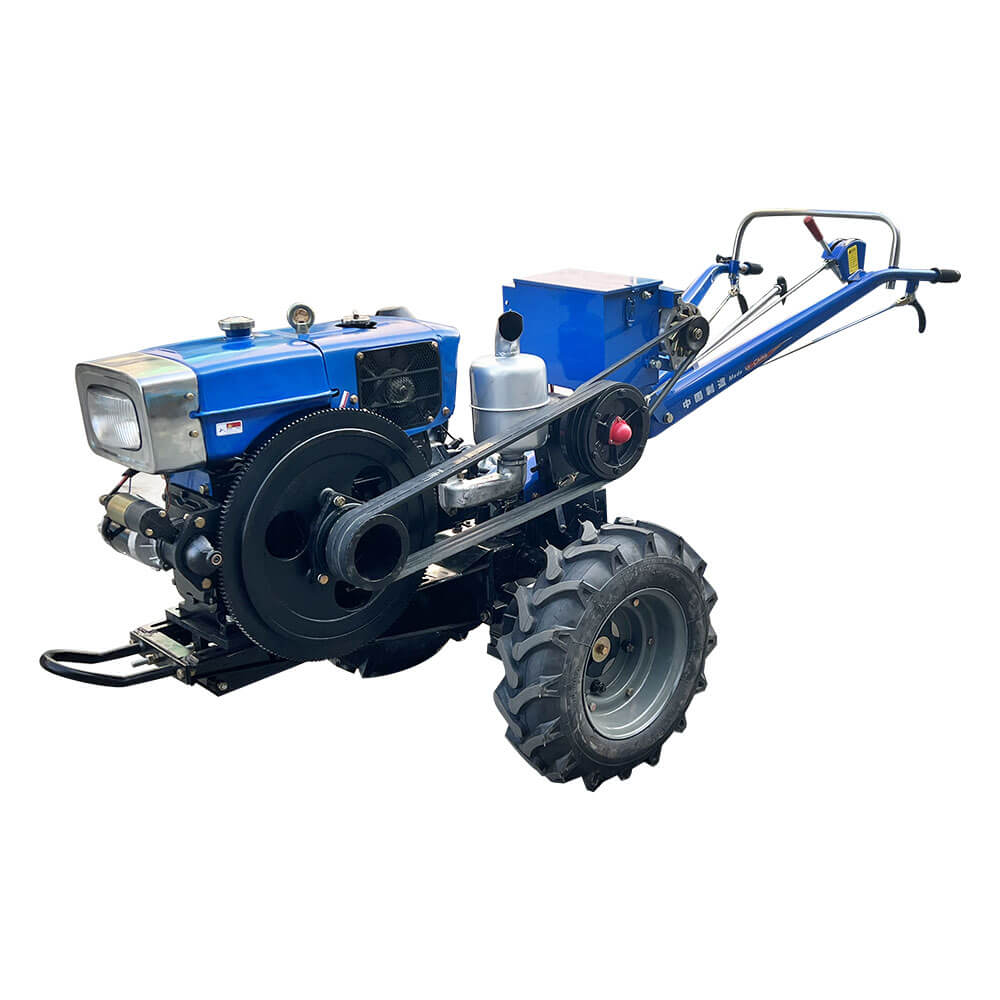

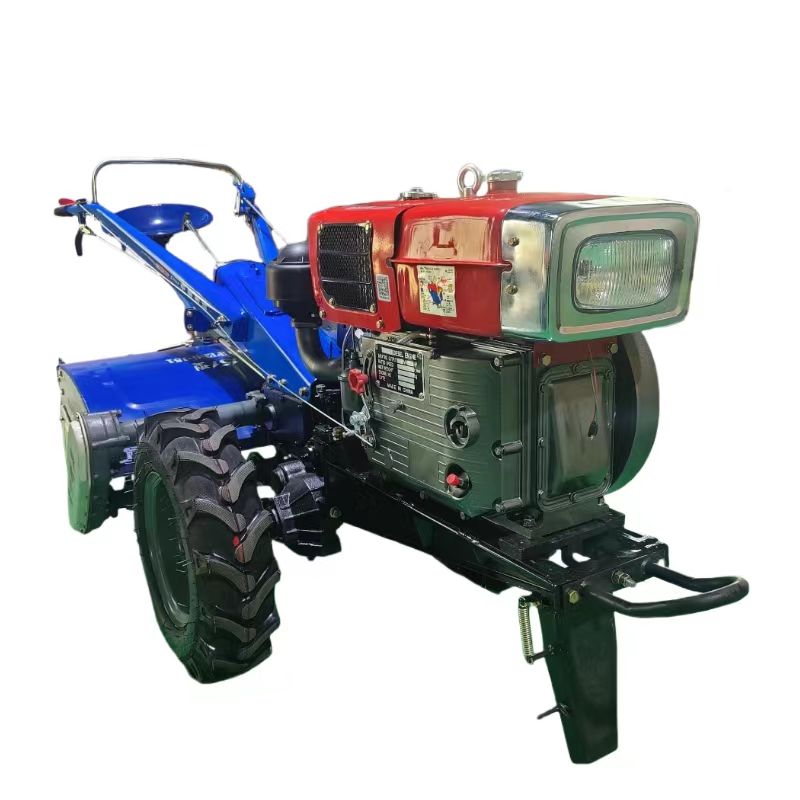

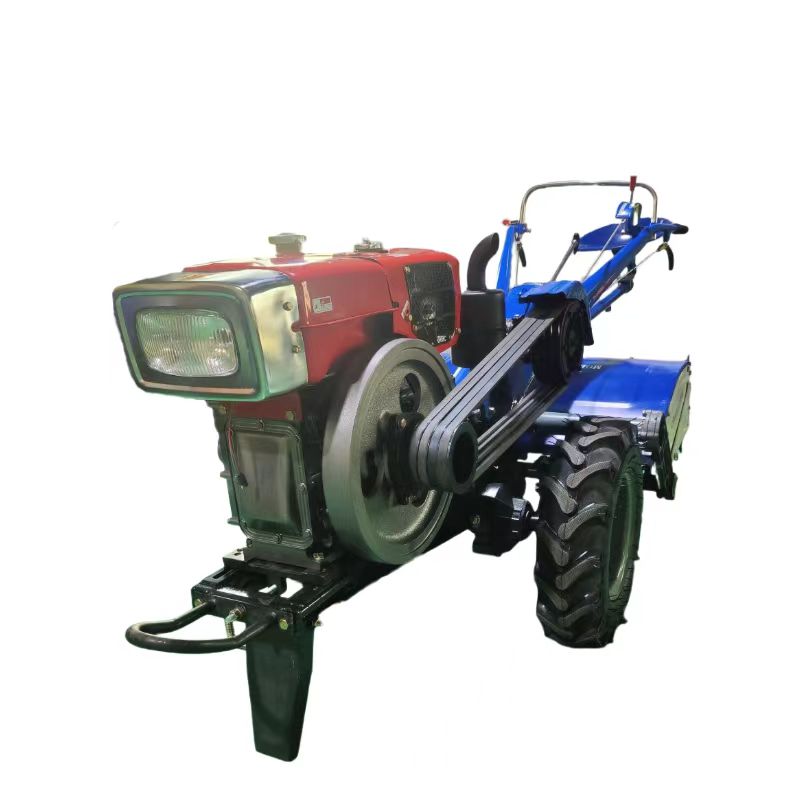

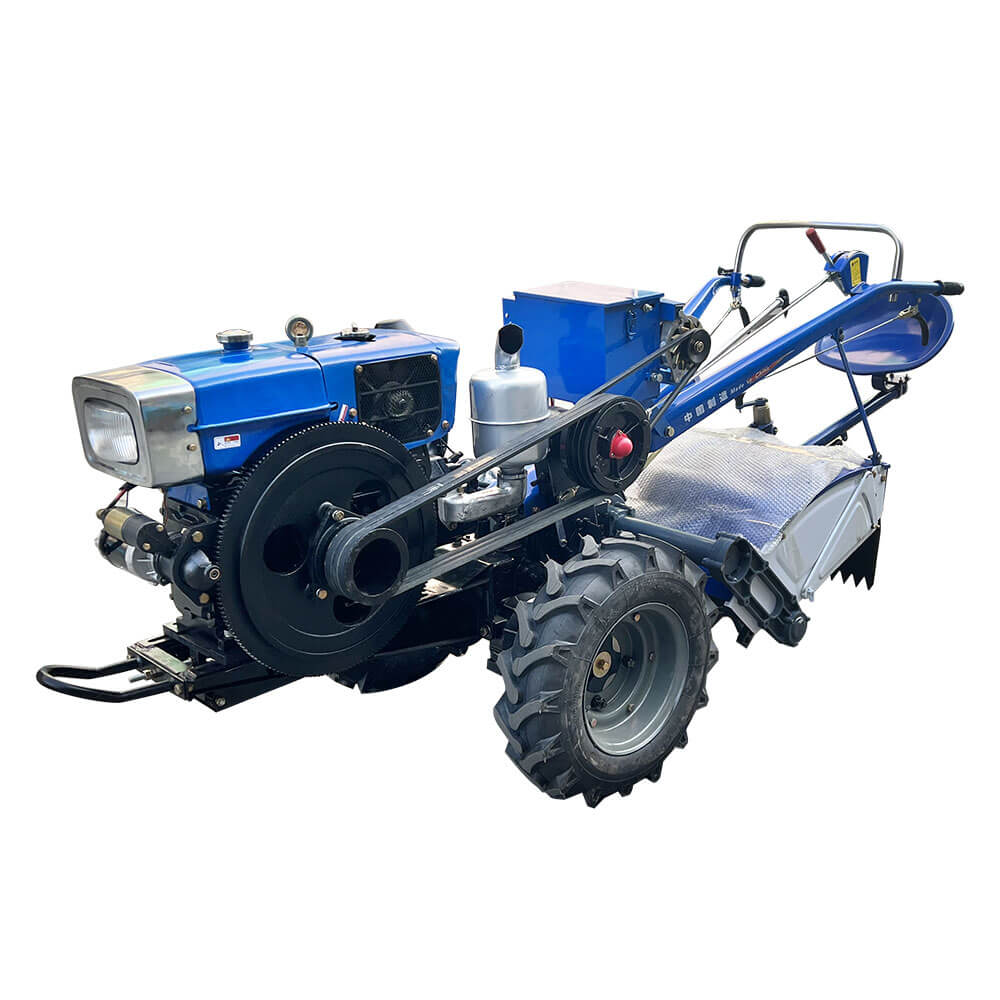

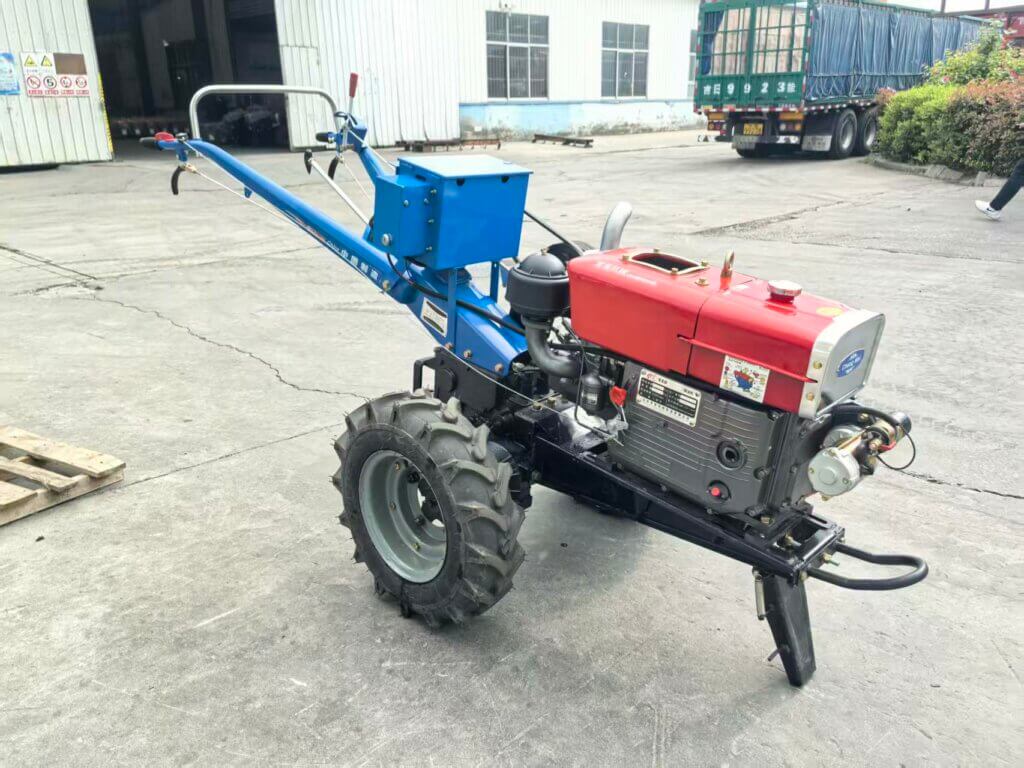

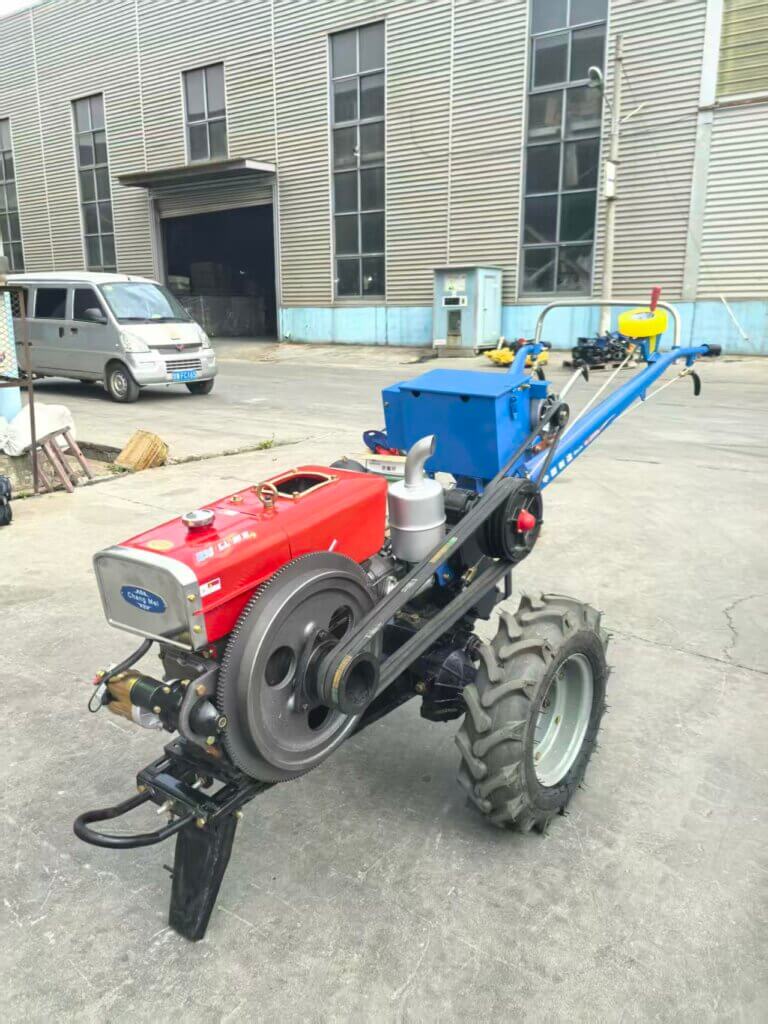

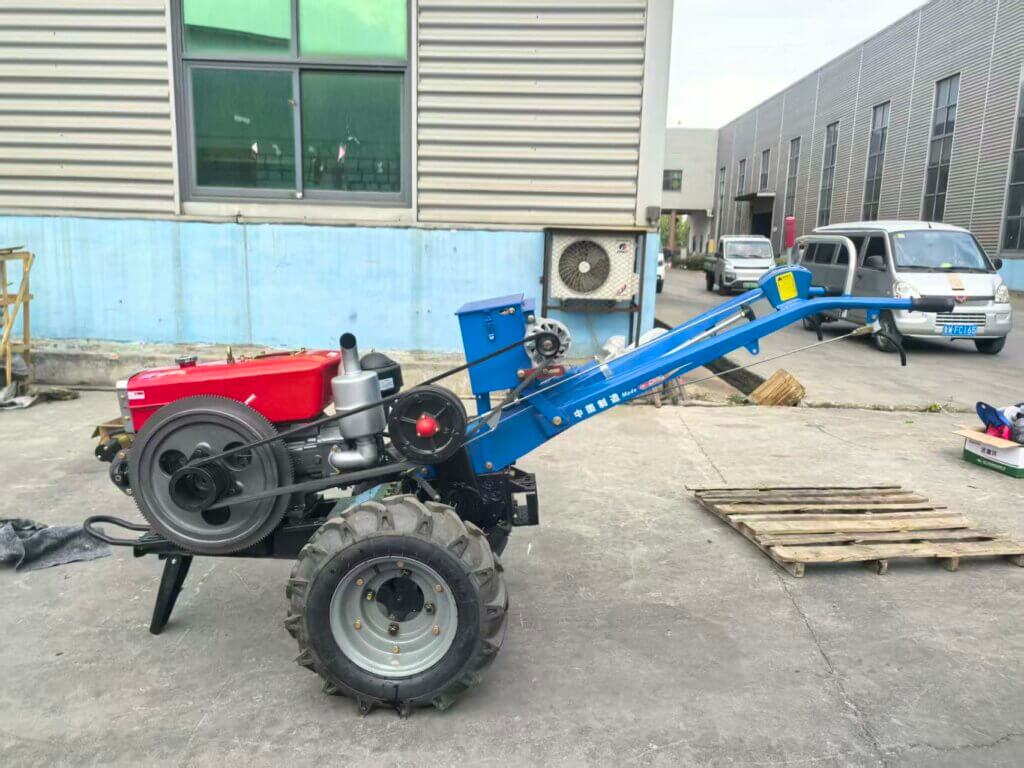

| CM151 Chassis | ||||||
| Model | CM151 | |||||
| Type | Traction&Driving | |||||
| Rated traction | 2400N | |||||
| Dimensions(L*W*H)w | 2680*960*1250mm | |||||
| Min Ground Distance | 185mm | |||||
| Structure Weight | 185Kg | |||||
| Type Of Clutch | Double friction disc of constant conjunction | |||||
| Type Of Steering Gear | Meshing Sleeve | |||||
| Type Of Brake | Cricoids Inside Expansion | |||||
| Triangle Belt | Four B1880 | |||||
| Type Of Tyre | 6.00-12 | |||||
| Tread | 580-800mm | |||||
| Style | Six forward, two backward | |||||
| ZS1100 Diesel Engine | ||||||
| Model | ZS1100NL | |||||
| Type | single cyulinder,horizontal,4strok,direct injection | |||||
| Bore*Strok(mm) | 100*115 | |||||
| Total Displacement(L) | 0.903 | |||||
| Rated Output(kw) | 11.03 | |||||
| Max.Output(kw/rpm) | 12.13 | |||||
| Rated Speed(r/min) | 2200 | |||||
| Specific Fuel(g/kwh) | ≤246.2 | |||||
| Tank Capacity | 3 | |||||
| Fuel Tank Capacity | 12 | |||||
| Cooling System Comsuption | Evaporative/Condensing | |||||
| Lubrication Method | Pressure Splash spray | |||||
| Starting Method | Hand Start/Electric Start | |||||
| Net Weight(kg) | 165 | |||||
