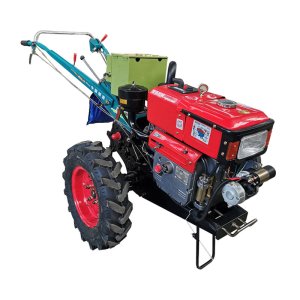

| CM101 Chassis | ||||||
| Model | CM101 | |||||
| Type | Traction&Driving | |||||
| Rated traction | 1700N | |||||
| Dimensions(L*W*H)w | 2170*890*1150mm | |||||
| Min Ground Distance | 210mm | |||||
| Structure Weight | 150Kg | |||||
| Type Of Clutch | Single/Double friction disc of constant conjunction | |||||
| Type Of Steering Gear | Meshing Sleeve | |||||
| Type Of Brake | Cricoids Inside Expansion | |||||
| Type Of Tyre | 6.00-12 | |||||
| Tread | 640-680mm | |||||
| Style | Six forward, two backward | |||||
| Semi-Axis | 360/420 | |||||
| ZR195 Diesel Engine | ||||||
| Model | ZR195 | |||||
| Type | single cyulinder,horizontal,4strok,Swirl chamber/direct injection | |||||
| Bore*Strok(mm) | 95*100 | |||||
| Total Displacement(L) | 0.67 | |||||
| Rated Output(kw) | 8.8 | |||||
| Max.Output(kw/rpm) | 9.3 | |||||
| Rated Speed(r/min) | 2300 | |||||
| Specific Fuel(g/kwh) | ≤258.4 | |||||
| Tank Capacity | 2 | |||||
| Fuel Tank Capacity | 9.5 | |||||
| Cooling System Comsuption | Condensing | |||||
| Lubrication Method | Pressure Splash spray | |||||
| Starting Method | Hand Start/Electric Start | |||||
| Net Weight(kg) | 115 | |||||
